A BNC antenna can be connected to a BNC antenna extension cable for a variety of radio applications working across AM, FM, HF, UHF and VHF frequencies. Radio: BNC Antennas with a BNC antenna extension have a wide variety of Radio Frequency applications making them useful in Ham radio connections.Video: BNC has an ideal impedance for video and the coax cable provides well shielded transmission.
New ranges of custom and modified BNC HD connectors are now finding use for HDTV applications also. Television: The 50 and 75 ohm impedances of BNC connectors enable them to efficiently carry signal rather than power over distances making them a favorable choice in the television industry.Test equipment: BNC cables and connectors offer ease of use and a secure connection in test equipment such as audio generators, power meters and oscilloscopes.Aerospace: BNC connectors create a stable and robust connection that can endure the environmental pressures, temperature and pressure changes and vibrations experienced in aviation.The uses of BNC cables have since expanded to include a wide variety of Radio Frequency (RF) applications including: Originally developed for military use, BNC cables and connectors were initially adapted for use in early computer networks particularly those using Ethernet. BNC connectors usually work with frequencies of 4GHz or less with the 75 ohm connector specified for frequencies of around 2 GHz. These connectors have been made to match the impedance of the BNC cable to which they are attached and are typically available with 50 ohm or 75 ohm impedance typically. They possess a solder center pin and connect the braid of the coax cable to an inner ferrule with a stuffing-nut attachment. These connectors are again attached to trimmed and stripped cable.

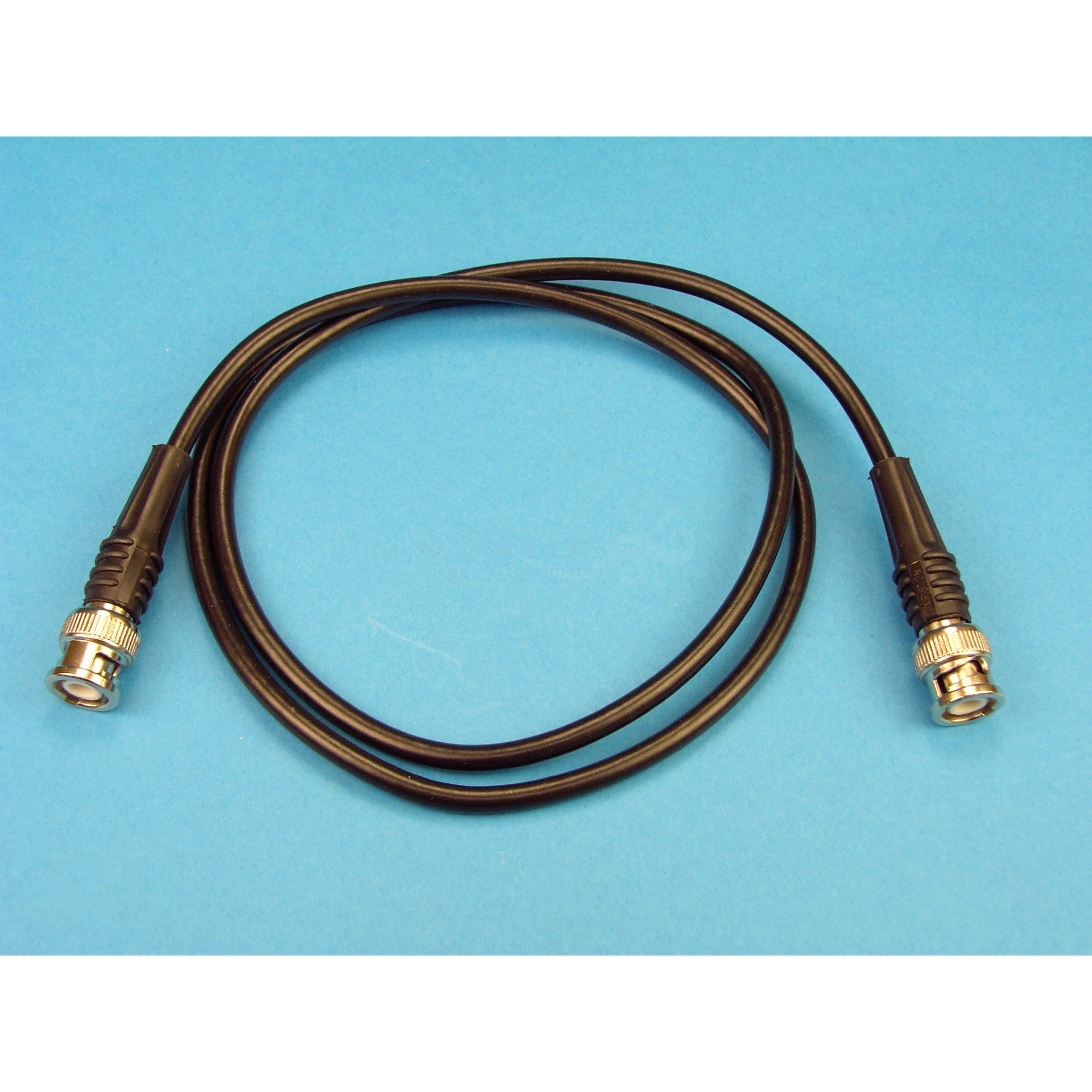

#Bnc to bnc cable install
Solder type BNC connectors Are more difficult to install but are an alternative where the more common crimp type connectors are unavailable.They comprise a crimp outer sleeve known as a ferrule as well as a center pin that can also be crimped. Crimp type BNC connectors can be accurately matched and attached to a trimmed and stripped coax cable with an appropriate crimping tool.The terminus of the connector can be either crimped or soldered. And a die-cast BNC connector body/housing.This is a secure connection which is not easily dislodged or accidentally pulled out. L-shaped slots on the female connector with a quarter turn.A female connector usually anchored to the relevant piece of equipment.īNC connectors mate using a bayonet connection:.A male part which typically is attached to a coax cable.Terminating a coax cable to the connector can be done either by clamping or crimping.
#Bnc to bnc cable tv
Gender is determined by the inside wire - not the outside connector.īNC is not only used for antenna cables, but also for CCTV and other video applications, audio, TV receivers, and networking coax applications.īNC RF connector is used for terminating a variety of miniature to standard RG coax cables.
This miniature connector maintains the co-axial cable shielding and provides a low impedance connection that can be rapidly assembled and dismantled. The BNC connector is a specialized connector used with co-axial cable and designed to work at multi-megahertz radio frequencies.
